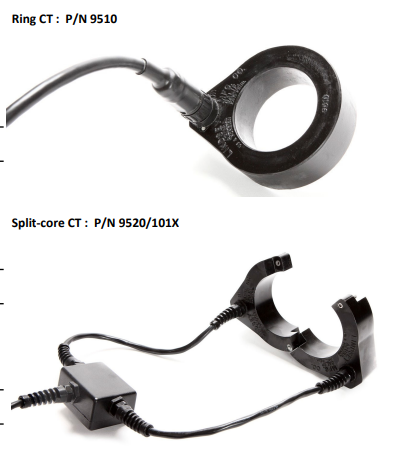

Underground Current Sensor
Ring and split-core current sensors for medium-voltage underground applications.
Product Overview
Lindsey underground current sensors provide current measurement for underground and pad-mount switchgear. Ring-type and split-core configurations provide installation flexibility for different equipment arrangements.
Key Specifications
Application: Underground / Pad-Mount Switchgear
Sensor Types: Ring-type and Split-core
Insulation Class: 600 V
Measurement: Current
Accuracy Options: 1%, 0.3%, and 0.15S depending on model
Application: Monitoring, Metering, Protection
Weight : 4lbs (1.8Kg(
Output Burden Limits : 10K Ohm MIN, 0.9 Ohm MAX, 22.5 Ohm MAX, 1M Ohm MA, 0.22 Ohm MAX
Sensor Types: Ring-type and Split-core
Insulation Class: 600 V
Measurement: Current
Accuracy Options: 1%, 0.3%, and 0.15S depending on model
Application: Monitoring, Metering, Protection
Weight : 4lbs (1.8Kg(
Output Burden Limits : 10K Ohm MIN, 0.9 Ohm MAX, 22.5 Ohm MAX, 1M Ohm MA, 0.22 Ohm MAX
