Smartline-Tamper
Lindsey’s SMARTLINE-TAMPER system provides early warning and detection of vandalism and sabotage of transmission towers.
Product Overview

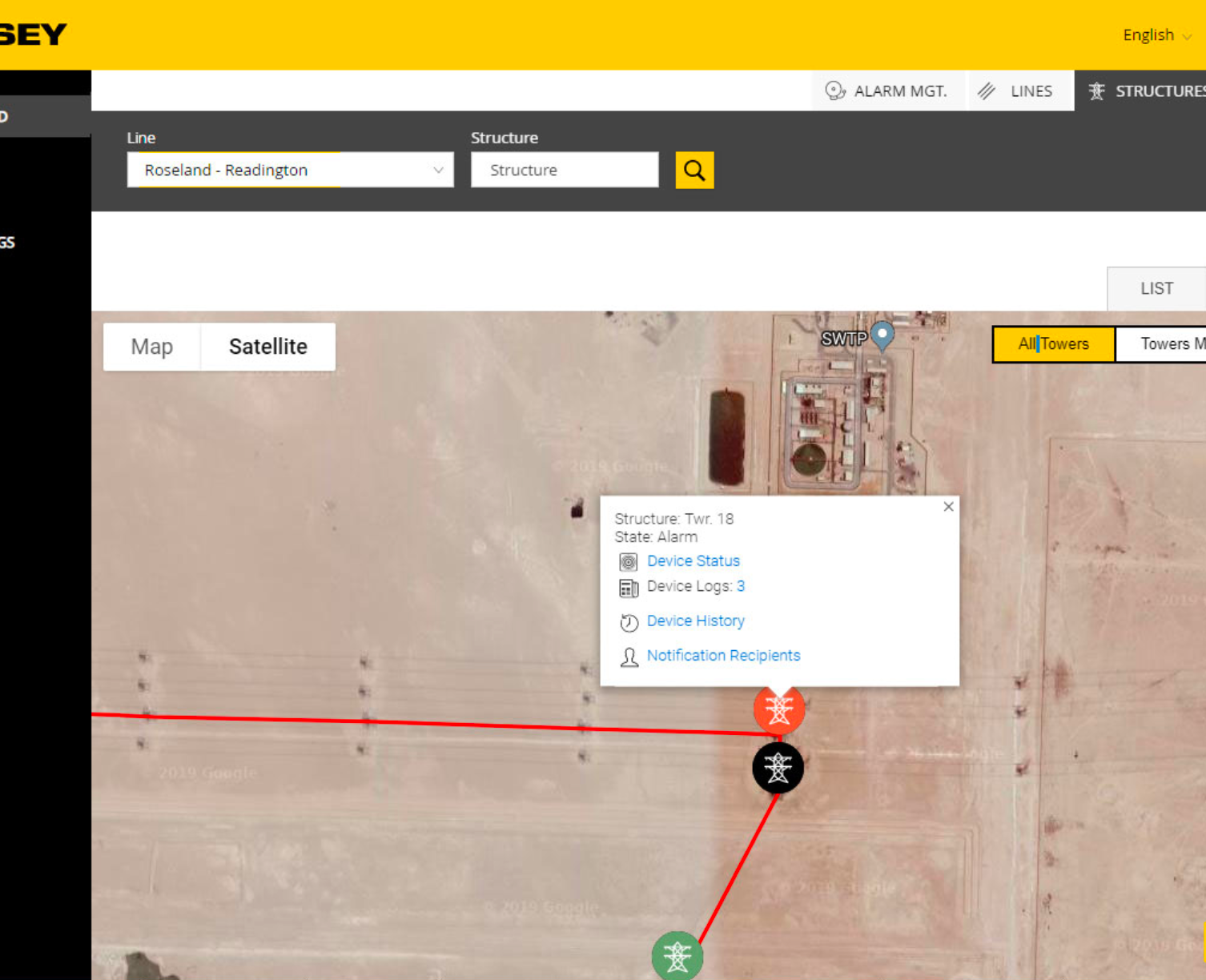

The Lindsey SMARTLINE-TAMPERTM Tower Security Monitoring System provides for detection of intrusion around the base of lattice transmission tower installations and subsequent tampering with the structure. The system combines advanced tower tampering sensor technology with convenient web based reporting and activity logging software. Infrared sensors detect human presence at the tower base while accelerometers and advanced algorithms monitor conductor vibration patterns associated with tower tampering.
Key Specifications
Conductor operating current 80A min - 1500A, 80A turn on
Conductor voltage : 765kV L-L max
AC voltage frequency : 50Hz - 60Hz
Conductor temperature : 356°F (180°C) max
Conductor size : Up to 1.8” (46mm)
Conductor type : Aluminum or copper
Infrared sensor lens angle : 50°
Effective installation height : 35m maximum
Power : Self-powered
Communications : Iridium satellite radio (built-in)
Operating ambient temperature : 158°F (70°C) max
Dimensions : 16.5” (L) x 6.75” (W) x 8.75” (H) (420mm x 170mm x 220mm)
Weight : 17 lbs (7.7kg)
Conductor voltage : 765kV L-L max
AC voltage frequency : 50Hz - 60Hz
Conductor temperature : 356°F (180°C) max
Conductor size : Up to 1.8” (46mm)
Conductor type : Aluminum or copper
Infrared sensor lens angle : 50°
Effective installation height : 35m maximum
Power : Self-powered
Communications : Iridium satellite radio (built-in)
Operating ambient temperature : 158°F (70°C) max
Dimensions : 16.5” (L) x 6.75” (W) x 8.75” (H) (420mm x 170mm x 220mm)
Weight : 17 lbs (7.7kg)
