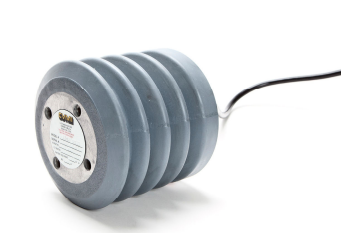

Standoff Insulator Voltage Sensor
High-accuracy standoff insulator-style voltage sensors are flat through the 20th harmonic and are available in hi-pot versions. Sensors are interchangeable with porcelain standoffs using standard 3-inch bolt circles
Product Overview
The Lindsey Voltage Monitoring Insulator (VMI) is designed to be interchangeable with ordinary standoff insulators in either indoor or outdoor applications. They may be installed indoors or in cabinets as a bus support in vertical or horizontal orientation. Brackets are available to mount VMI’s outdoors on crossarms or existing switchgear. The VMI is not designed or intended to support conductor load and is not a replacement for a line post insulator.
Key Specifications
Insulation Class : 15kV 25kV 35kV 46kV
Impulse (BIL) : 95kV 110kV 150kV 200kV 250kV
Leakage Distance (in.) : 10.8 12.3 17.2 20.2 25 29.3 37.7 42.0
Dry Arc Distance (in.) : 6 7.5 10 12 14 15 18 22.0
Overall Height (in.) : 6 7.5 10 12 14 15 18 22.0
Withstand (60 Hz, 1 min.) : 34kV 40kV 50kV 65kV
Corona : 11kV 19kV 26kV 33kV
Impulse (BIL) : 95kV 110kV 150kV 200kV 250kV
Leakage Distance (in.) : 10.8 12.3 17.2 20.2 25 29.3 37.7 42.0
Dry Arc Distance (in.) : 6 7.5 10 12 14 15 18 22.0
Overall Height (in.) : 6 7.5 10 12 14 15 18 22.0
Withstand (60 Hz, 1 min.) : 34kV 40kV 50kV 65kV
Corona : 11kV 19kV 26kV 33kV
