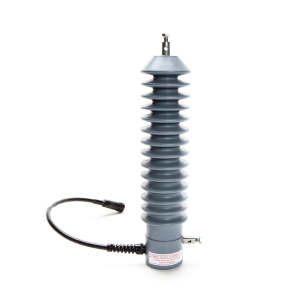

Insulator Voltage Sensor - SVMI
Lindsey SVMI sensors offer a simple installaƟon procedure
Product Overview
Designed specifically for 15 to 35kV systems, this sensor does not require any special calibration to produce its output at the stated accuracy. The SVMI sensor is intended to be mounted vertically.
Key Specifications
INSULATION CLASS : 15kV, 25kV, 35kV
Impulse (BIL) : 110kV 150kV 200kV
Leakage Distance (in.) : 27.0 27.0 37.25
DRY ARC DISTANCE (in) : 13.6 13.6 17.25
Overall Height (in.) : 17.4 17.4 21.5
Corona (extinction) : 11kV 19kV 26kV
Voltage Accuracy : 0.5% (1% for production prior to 2017)
Impulse (BIL) : 110kV 150kV 200kV
Leakage Distance (in.) : 27.0 27.0 37.25
DRY ARC DISTANCE (in) : 13.6 13.6 17.25
Overall Height (in.) : 17.4 17.4 21.5
Corona (extinction) : 11kV 19kV 26kV
Voltage Accuracy : 0.5% (1% for production prior to 2017)
