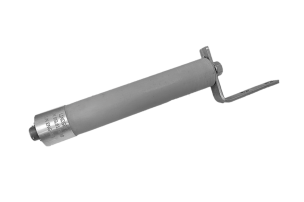

Type LVS Live Front Voltage Sensor
Type LVS sensors are voltage sensors with either 0.5% or 0.3% accuracy for use in live-front, air-insulated, electrical equipment where space is limited
Product Overview
The Lindsey Type LVS is a compact voltage sensor designed for live-front, air-insulated switchgear. It is suitable for metering, relaying, and control applications.
Key Specifications
Insulation Class : 15kV
Voltage Accuracy : 0.3% or 0.5%
Ratio : By Catalog Number
Operating Temperature Range : -40°C / +55°C
Stated Accuracy Temperature : -40°C / +55°C
Impulse (BIL) : 95kV
60Hz Withstand (1 minute) : 30kV
Minimum Electrical Load : 1 M-Ohm
Length : (A) 10.375" (265mm)
Creep : 8 3/26” (208 mm)
Weight : 2.3 lbs. (1.1 kg)
Voltage Accuracy : 0.3% or 0.5%
Ratio : By Catalog Number
Operating Temperature Range : -40°C / +55°C
Stated Accuracy Temperature : -40°C / +55°C
Impulse (BIL) : 95kV
60Hz Withstand (1 minute) : 30kV
Minimum Electrical Load : 1 M-Ohm
Length : (A) 10.375" (265mm)
Creep : 8 3/26” (208 mm)
Weight : 2.3 lbs. (1.1 kg)
