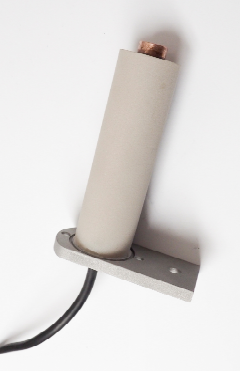

Type 9561 LV Switchgear Voltage Sensor
Voltage sensor for low-voltage switchgear applications up to 1000 VAC.
Product Overview
Type 9561 sensors are voltage sensors for use in low voltage (up to 1000 V) switchgear where high accuracy voltage sensing is required.
Key Specifications
Insulation Class : 1000 V
Voltage Accuracy : 0.5% or 1%
Ratio : By Catalog Number
Operating Temperature Range : -40°C / +55°C
Stated Accuracy Temperature : -40°C / +55°C
60Hz Withstand (1 minute) : 2000 Volts
Minimum Electrical Load : 1 M-Ohm
Length : 4 3/4" (120mm)
Weight : (without cable) 0.5 lb. (0.2 kg)
Voltage Accuracy : 0.5% or 1%
Ratio : By Catalog Number
Operating Temperature Range : -40°C / +55°C
Stated Accuracy Temperature : -40°C / +55°C
60Hz Withstand (1 minute) : 2000 Volts
Minimum Electrical Load : 1 M-Ohm
Length : 4 3/4" (120mm)
Weight : (without cable) 0.5 lb. (0.2 kg)
