EnerLyzer
Real-time measurement and signal recording for CMC test sets.
Product Overview

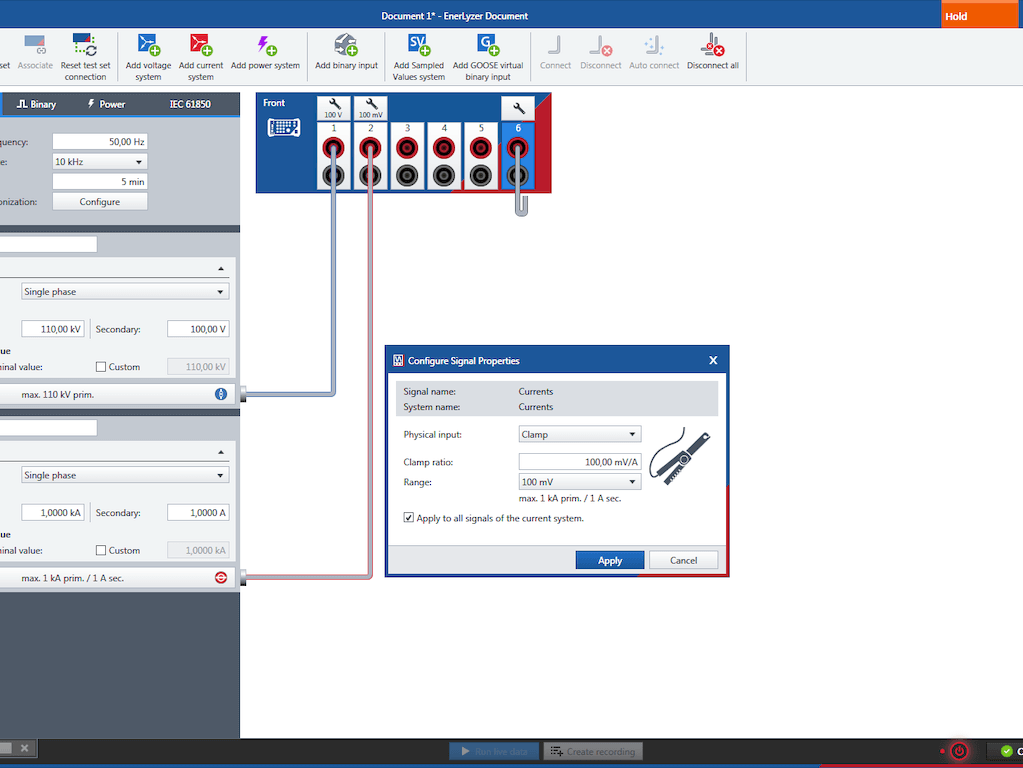

EnerLyzer transforms the CMC test set into a multifunctional measuring, recording and analysis device. Each of its binary inputs can be configured as an analog measuring input and can then directly measure voltages as high as 600 VRMS. Currents are acquired via the measuring shunts 1 or current clamps. The CMC test set can be used for conventional testing and simultaneously for measuring with EnerLyzer. EnerLyzer is available in two versions: EnerLyzer and EnerLyzer Classic.
EnerLyzer: The modernized version with an extended range of functions, available for CMC 430 and CMC 500.
EnerLyzer: The modernized version with an extended range of functions, available for CMC 430 and CMC 500.
Key Specifications

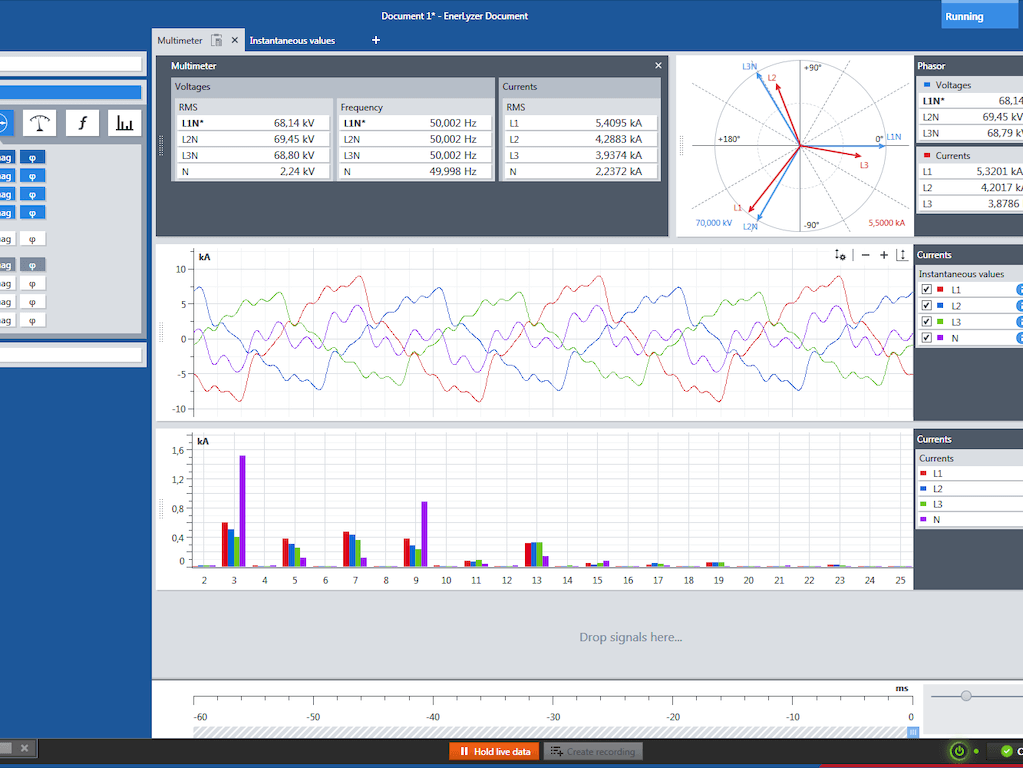

- Observe and analyze all measurements live
- Execute analog, hybrid and fully digital measurements and recordings including conventional signals.
- Use time-synchronization with a PTP or IRIG-B time source
- Measure with high precision up to 40 kHz sampling rate

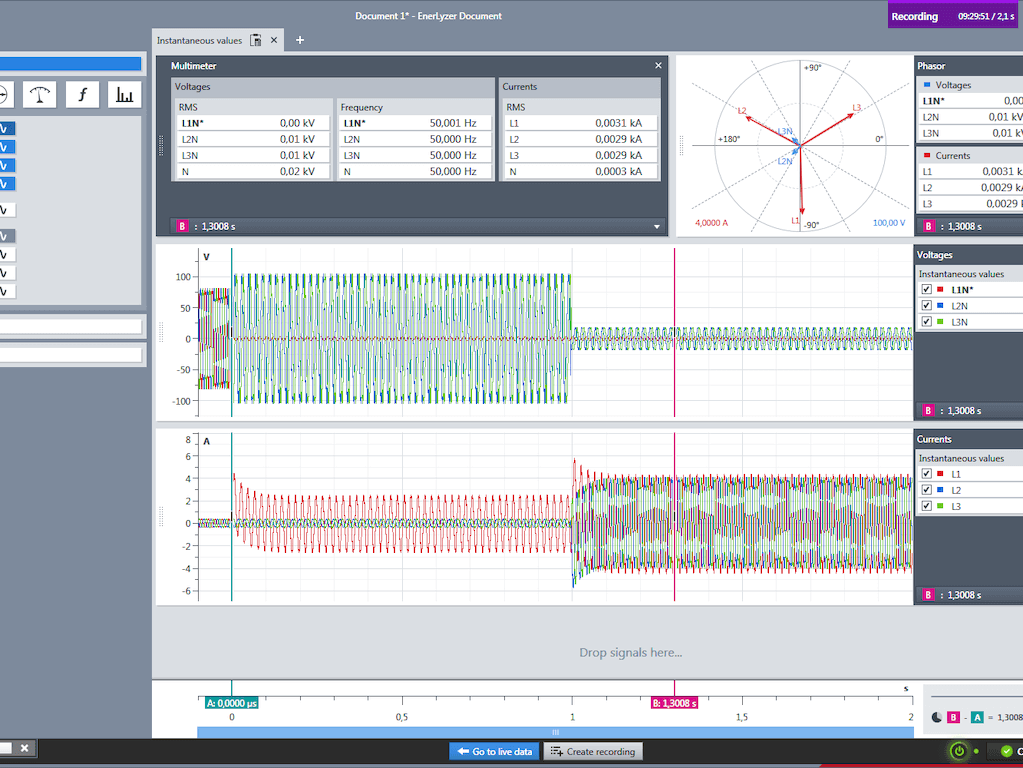

- Fault recordings triggered by events that can be initiated
- Use cursors for measurement and analysis
- Export recordings as COMTRADE or CSV file
- Execute analog, hybrid and fully digital measurements and recordings including conventional signals.
- Use time-synchronization with a PTP or IRIG-B time source
- Measure with high precision up to 40 kHz sampling rate
- Fault recordings triggered by events that can be initiated
- Use cursors for measurement and analysis
- Export recordings as COMTRADE or CSV file
