DGA Monitor OPT100
Vaisala OPT100 Optimus™ DGA Monitor is the solution for safe‑guarding critical transformers in harsh environments. It delivers out-of-the-box performance, eliminates false alarms, and gives you long-term, stable measurements for all fault gases.
Product Overview

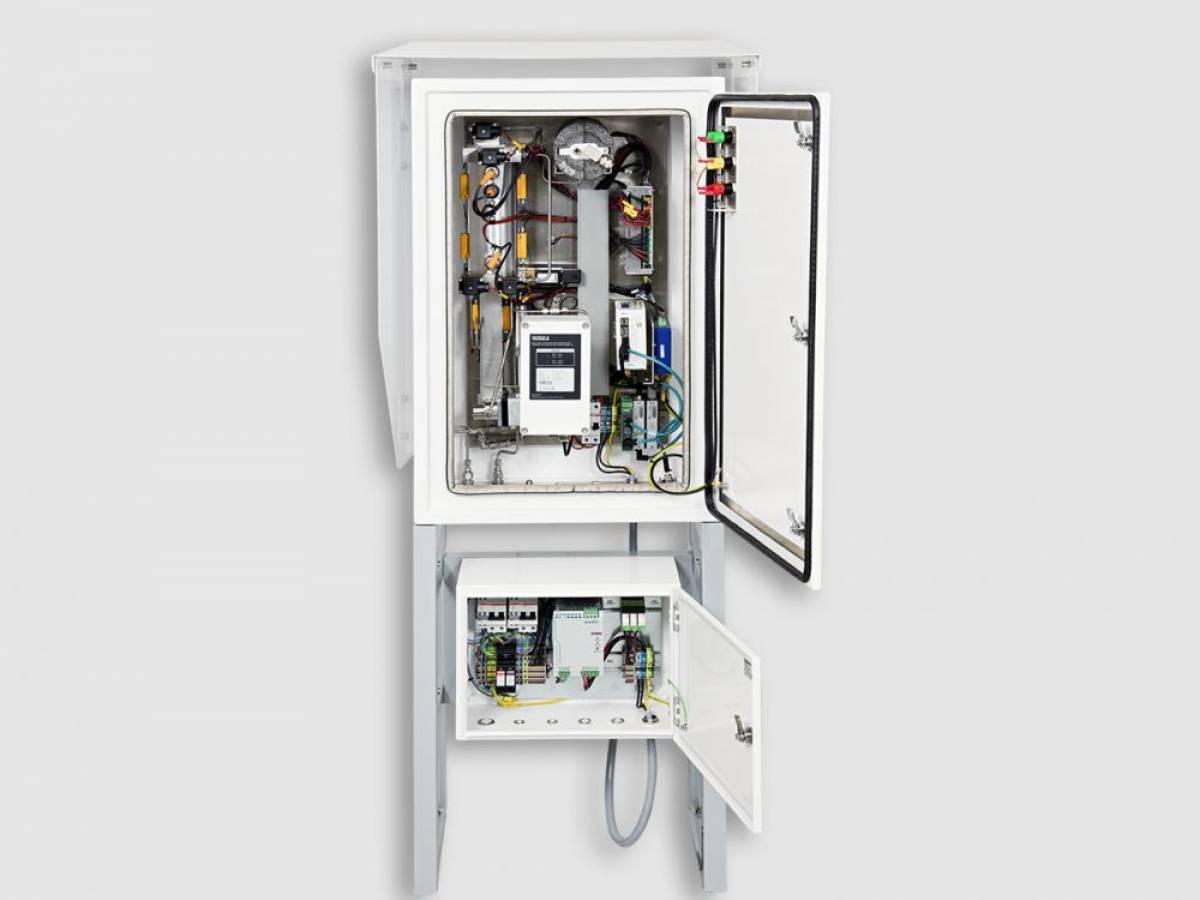

The Vaisala Optimus™ DGA Monitor OPT100 provides continuous online dissolved gas analysis for power transformers. It monitors key fault gases and moisture in transformer insulation oil to provide real-time information about transformer condition.
The OPT100 uses infrared measurement and vacuum gas extraction technology without consumables such as carrier gases, calibration gases, membranes, or internal columns. The monitor also includes Total Gas Pressure measurement for detecting ambient air ingress into sealed transformer tanks. An optional O2 + N2 measurement configuration enables monitoring and trending of all nine gases.
The OPT100 uses infrared measurement and vacuum gas extraction technology without consumables such as carrier gases, calibration gases, membranes, or internal columns. The monitor also includes Total Gas Pressure measurement for detecting ambient air ingress into sealed transformer tanks. An optional O2 + N2 measurement configuration enables monitoring and trending of all nine gases.
Key Specifications
Measurement Technology: Infrared (IR) + Vacuum Gas Extraction
Measured Parameters:
- Hydrogen (H2)
- Methane (CH4)
- Ethane (C2H6)
- Ethylene (C2H4)
- Acetylene (C2H2)
- Carbon Monoxide (CO)
- Carbon Dioxide (CO2)
- Moisture (H2O)
- Total Gas Pressure (TGP)
Optional:
- Oxygen (O2)
- Nitrogen (N2)
Gas Monitoring: Up to 9 gases with optional O2 + N2
Oil Compatibility: Mineral oils and natural/synthetic ester liquids
Housing: IP66
Maintenance: No consumables; automatic calibration
Interface: Ethernet / communication interfaces for SCADA
User Interface: Integrated web UI

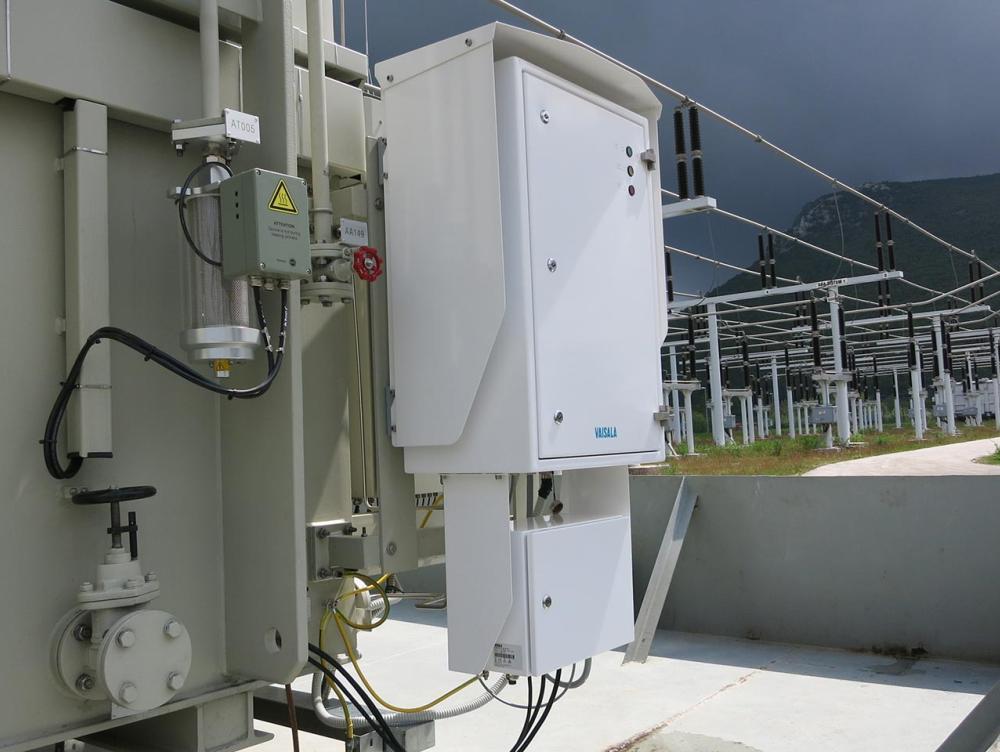

Installation: Outdoor or indoor, adjacent to transformer
Application: DGA, transformer condition monitoring, fault detection, air ingress detection
Measured Parameters:
- Hydrogen (H2)
- Methane (CH4)
- Ethane (C2H6)
- Ethylene (C2H4)
- Acetylene (C2H2)
- Carbon Monoxide (CO)
- Carbon Dioxide (CO2)
- Moisture (H2O)
- Total Gas Pressure (TGP)
Optional:
- Oxygen (O2)
- Nitrogen (N2)
Gas Monitoring: Up to 9 gases with optional O2 + N2
Oil Compatibility: Mineral oils and natural/synthetic ester liquids
Housing: IP66
Maintenance: No consumables; automatic calibration
Interface: Ethernet / communication interfaces for SCADA
User Interface: Integrated web UI
Installation: Outdoor or indoor, adjacent to transformer
Application: DGA, transformer condition monitoring, fault detection, air ingress detection
