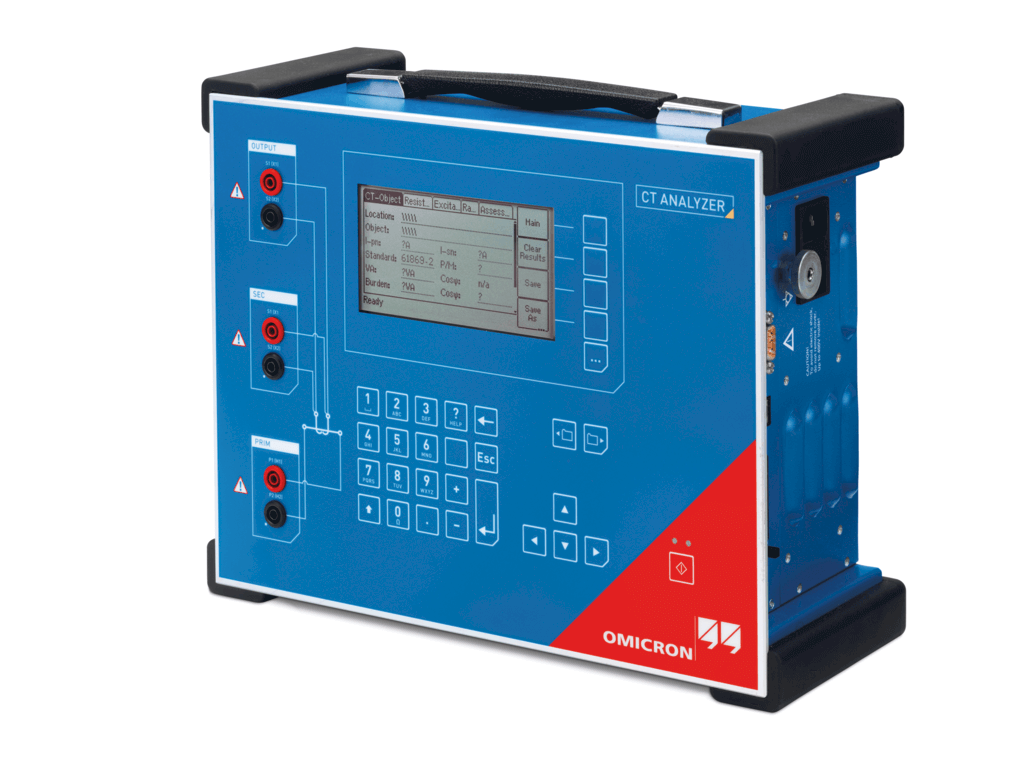

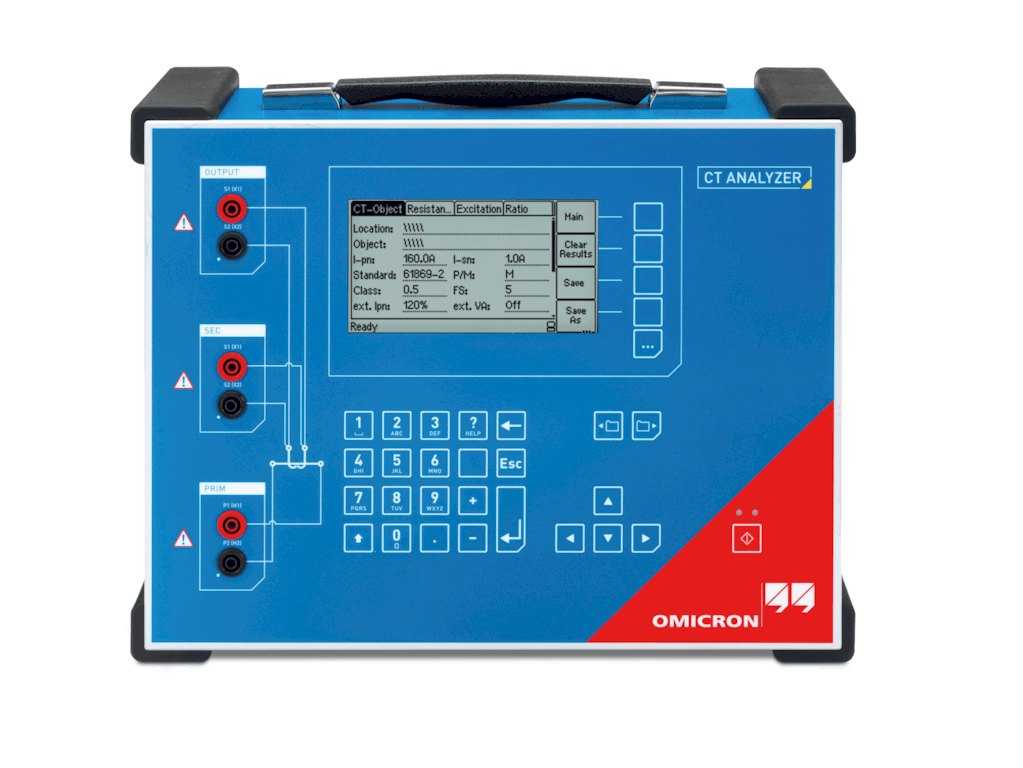

CT Analyzer
Current transformer testing, calibration and assessment
Product Overview
How CT Analyzer works :
- Injects low test signals into secondary side of the CT
- Determines the CT‘s equivalent circuit parameters
- Identifies all relevant CT performance parameters
- Displays all relevant parameters of the CT and its accuracy at different currents and burdens
- Evaluates the CT according to the selected standard
- Determines unknown CT nameplate parameters
- Demagnetizes the CT after the test.
- Injects low test signals into secondary side of the CT
- Determines the CT‘s equivalent circuit parameters
- Identifies all relevant CT performance parameters
- Displays all relevant parameters of the CT and its accuracy at different currents and burdens
- Evaluates the CT according to the selected standard
- Determines unknown CT nameplate parameters
- Demagnetizes the CT after the test.
Key Specifications
- Highest measurement accuracy: 0.02 % / 1 min when calibrating on site
- Very small and lightweight (< 8 kg / 17.4 lbs), easy to transport for on-site testing
- Automatic evaluation according to IEC, IEEE and to customized or local/national standards
- Short commissioning times (duration of the automatic test < 1min)
- Excellent workplace safety - Tests run at max. 120 V
- Integration into testing routines using Remote Interface Control
- Very small and lightweight (< 8 kg / 17.4 lbs), easy to transport for on-site testing
- Automatic evaluation according to IEC, IEEE and to customized or local/national standards
- Short commissioning times (duration of the automatic test < 1min)
- Excellent workplace safety - Tests run at max. 120 V
- Integration into testing routines using Remote Interface Control
