Smart accessory

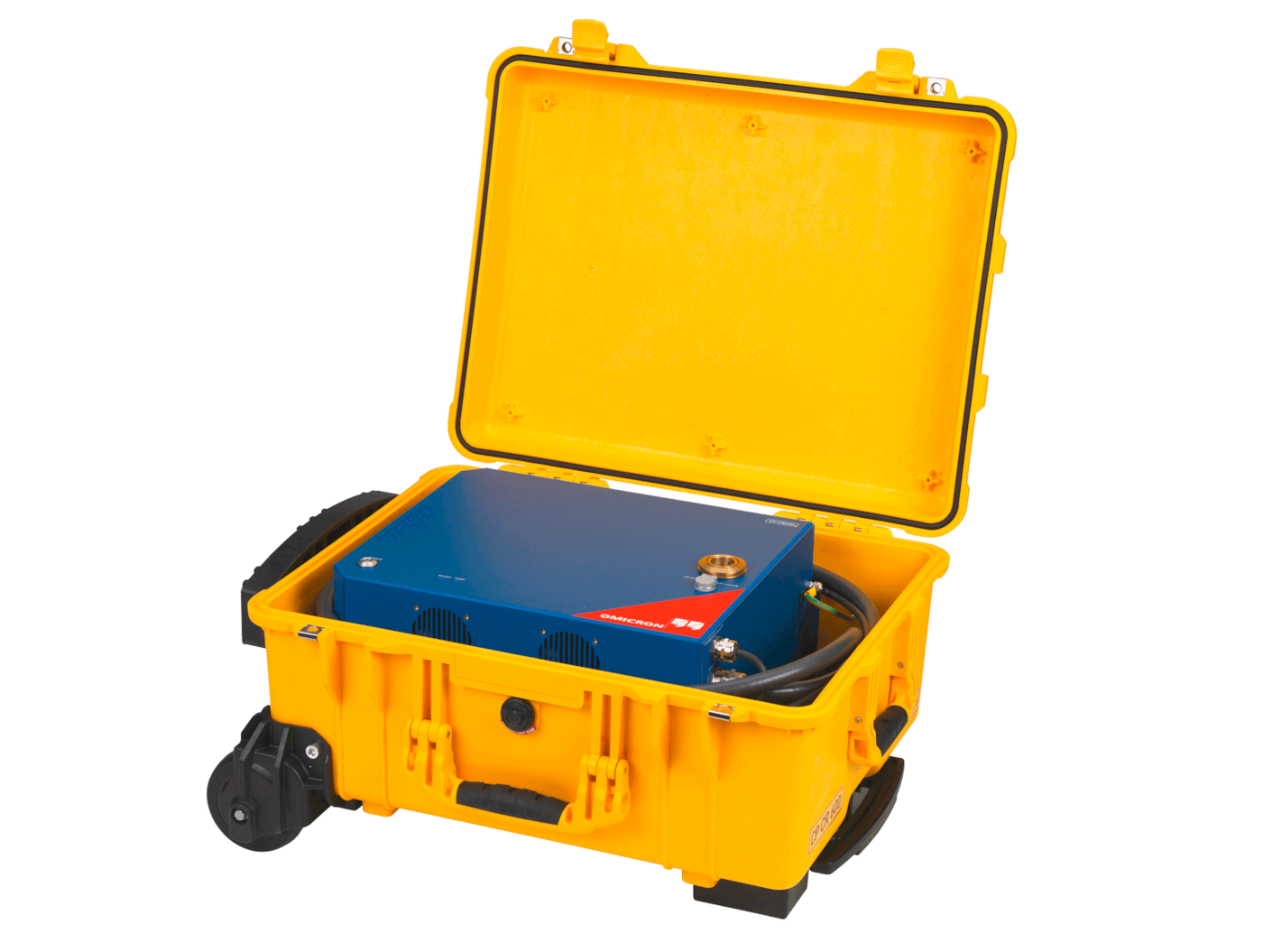

The CP CR600 allows testing of the insulation quality of generators, motors and other systems with high capacitances up to 1 μF at rated frequency.

Combined with the CPC 100 + CPTD15 you can use the system for dissipation factor (tan delta) and power factor measurements. Additionally, you can use the CPC 100 + CP TD15 + CP CR600 as a high-voltage source for partial discharge measurements and voltage withstand tests on rotating machines.

Key features

• Maximum test voltage of 15 kV
• Easy to transport due to its modular and lightweight concept (48 kg / 106 lbs)
• Convenient and flexible test setup, ideal for test objects with limited access
• Low noise level, ideal for partial discharge measurements
• Several units can be connected in parallel

Applications

With CPC 100 + CP TD15 + CP CR600 you can measure the following electrical parameters:

• Capacitance and power/dissipation factor
• Voltage withstand
• DC winding resistance
• Contact resistance
• Impedance

The system can be used for insulation diagnostic testing of

• Generators
• Motors
• Other systems with large capacitances
